| Description | GRP |
|---|---|
| Specific Gravity | 1.8 |
| Glass Fiber Content | More than 40% |
| Tensile strength | 100 Mpa |
| Flexural modules | 16.4 Gpa |
| Flexural strength | 254 Mpa |
| Impact strength | 97 Kj/m2 |
| Density | 1800 Kg/m3 |
| Compression / Shear strength | 100 Mpa |
| Young’s Modulus | 93 Mpa |
| Barcol Hardness | 71 |
| Toxicity | NIL |
| ODP (Ozone Deflection Potential) | 0.00 |
| GWP (Global Warming Potential) | 1 |
| Odor & Taste | No Defects |
| Total Residual Chlorine | No Defects |
| THERMAL CONDUCTIVITY | ||
|---|---|---|
| Thermal Conductivity Kcal/m hr°C (KJ/m hr°C ) | ||
| Stee | 14.3 (59.9) | 24 (100) |
| GRP (Standard) | 3.0 (13.0) | 5 (21) |
| THERMAL PROPERTIES | ||
|---|---|---|
| Description | Value | |
| Thermal Expansion | 2.16×10-5/°C | |
| Thermal Conductivity | (Single Panel) | 0.15 Kcal/m hr °C (630 J/ m hr °C) |
| (Insulated Panel) | 0.02 Kcal/m hr °C (84 J/ m hr °C) | |
| Coefficient of overall heat Transmission | (Single Panel) | 5.0 Kcal/m² hr °C (21 KJ/ m² hr °C) |
| (Insulated Panel) | 1.0 Kcal/m² hr °C (4.2 KJ/ m² hr °C) | |
| Water Absorption | Less than 0.05% | |
| Cavity | Less than 2% | |
| Light transmission | 0.00% | |
| 1 | Side Panel | 500 X 1000mm, 1000 X 1000mm, 1000 X 1500mm, 1000 X 2000mm |
| 2 | Bottom Panel | 500 X 1000mm, 1000 X 1000mm |
| 3 | Roof Panel | 500 X 1000mm |
| 4 | Partition Panel | 500 X 1000mm, 1000 X 1000mm, 1000 X 1500mm, 1000 X 2000mm |
| 5 | Drain Panel | 1000 X 1000mm |

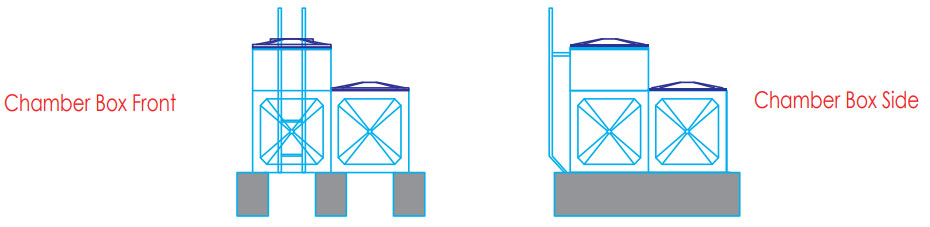

Float valve chambers shall be provided with central hinged lockable ABS lid with options of 1m x 1m with options for depth as 180mm, 300mm or 500mm having provision for type A air gap in compliance with BS6281: Part 1:1992

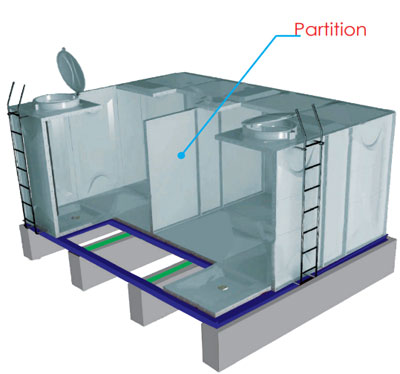

Partition Reinforcement
It is possible to eliminate unusable space, utilize the maximum space by installing a partition type tank Economical and effective maintenance.
Features :
Internal Compartment System :
If tanks for two different uses are needed in a confined area or boiler room, a 16 ton partition type tank can be installed to use half for drinking water, and half for service water. If separate tanks are installed, however, you have to install two tanks with a maximum of 6 tons, because you need to have 1 meter distance between tanks for maintenance and operating space.
Free Capacity Design
Using panels of various sizes, the MULTANK utilizes horizontal and vertical space at the maximum and those are suitable for an underground reserve tank of large capacity. It operates a corner-type system.
Possible Height to install tank: 1.0 M up to 5.0 M
Possible Capacity to install tank: 1Ton~5,000 Tons
